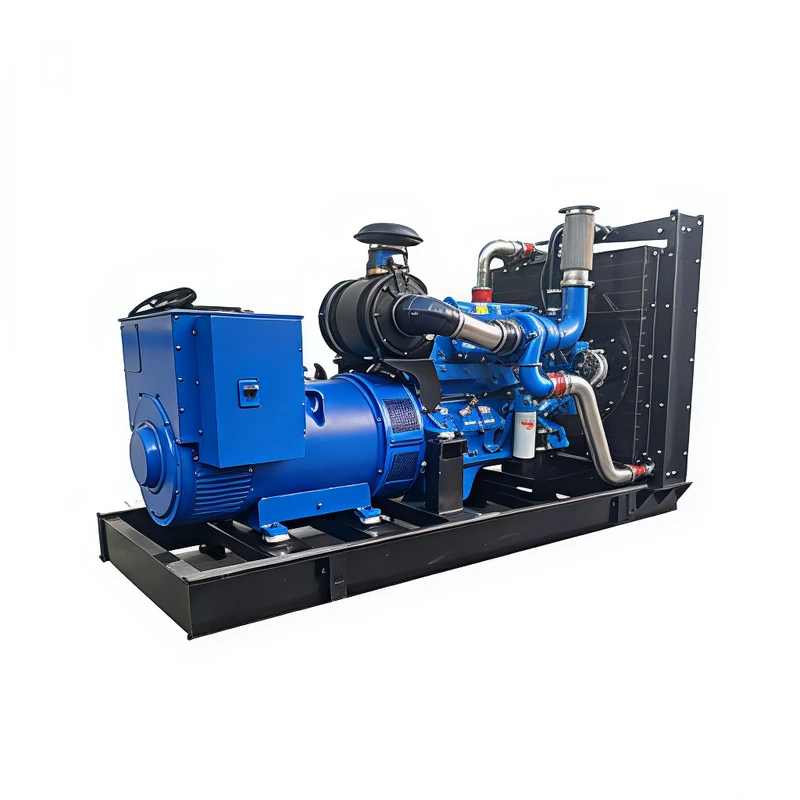

Open-frame structure
Engine and generator mounted on high-strength metal frame with fully exposed components, cutting maintenance downtime by 40% vs. enclosed models (no enclosure disassembly needed). Equipped with lockable four-wheel base for manual movement, ideal for frequent relocation.
OPEN FTAME TYPE
NO CANOPY
ENGINE: U.KPERKINS/CU
● Heavy duty diesel engine
● Four stroke, water cooled
● Cooling radiator and fan
● Free-maintenance type battery including ract and cable
● Special type flexiblee fuel connection exhaust silencer
● Hand Pump eliminate dirty oil
SILENT TYPE
Normal soundproof type,with canopy
● Brushlesss,single breaing,
flexile disc
● Insulation classs H and Protection class IP22
● Self-excitation and seelf-reegulation
● With AVR(auyomatic voltage regulation)
SUPER SILENT TYPE
EXTREME SOUNDPROO
● CANOPY: SILENT TYPE DESIGN/
SUPER SILENT TYPE DESIGN
● All canopy parts designed
with modular prinples
● All metal canopy parts
painted by electrostatic
polyester power paint
● Easy lifting and moving
Product parameters
| Model | Open Type-120KW | Rated Current | 216A |
| Power | 120 KW | Cylinders | 6 |
| 150 kva | Displacement | 6.75 L | |
|
Diesel Engine Model |
WP6D132E200 | Oil Capacity | 35 L |
|
Bore*Stroke |
105*130 mm | Oil Consumption | 198 g/kw ·h |
|
Size (L*W*H) |
2470*930*1450 mm | Unit Weight | 1550 Kg |
